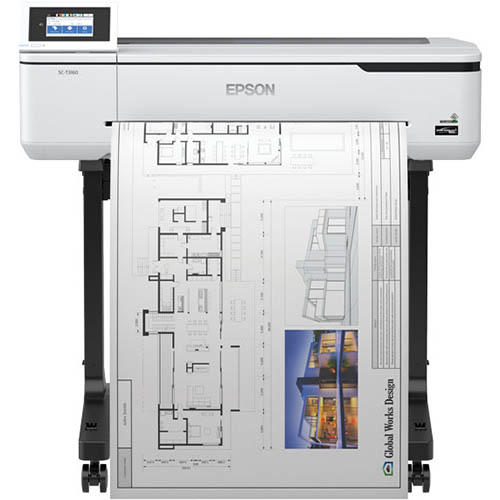

EPSON T3160M SURECOLOR LARGE FORMAT PRINTER 24 INCH

Code: 7090538   Brand: EPSON   Colour: GREY   Size: 24in

Please note: Prices are shown including GST (where applicable) and are in AUD$

The Epson SureColor Technical series is a versatile and compact range of printers
  • Designed for users who need to produce large-format colour and black-and-white images, economically and at high speed
  • Compatible with a wide range of media from basic bond paper, to photographic media
  • Support high resolution print with dense and consistent colour
  • Ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters and displays
  • The SC-T3160M features Epson's latest PrecisionCore print head and aqueous UltraChrome XD2 pigment ink. It will print an A1 image in as little as 34s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for small and medium sized businesses that want to produce wide format prints, the printer can be purchased in either a desktop or floor-standing configuration, has a very small footprint, and can be installed against a wall or in a corner
  • Also ships with software that enables easy printing from office and CAD/GIS applications
  • High Productivity - prints an A1 image in as little as 34s and includes an integrated auto-cutter
  • High Precision - 2400 x 1200dpi resolution Epson PrecisionCore print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
  • High Durability - all-pigment Epson UltraChrome XD2 ink dries almost instantly to be moisture and scratch resistant
  • High Reliability - solid construction backed with a comprehensive 'heads-n-all' warranty with service cover extendable up to 3 years
  • High Flexibility - supports roll paper up to 24 inch (610mm) wide, sheet paper up to A1 and has integrated scanner support for optional MFP functionality
  • High Convenience - large 4.3 inch touchscreen panel with easy to use interface, top loaded ink and media, spindle roll loading, integrated Auto Sheet Feeder, auto sheet/roll switching, single page prints are held by the printer for easy removal while the floor standing model ships with a basket
  • Low Running Cost - ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 80ml
  • Easy Integration - compact design, high speed Gigabit Ethernet, convenient WiFi/ WiFi Direct and AirPrint support, HP-GL/2 and RTL emulation
SIZE
  • Max Print Width: 24 inch wide (610mm)
  • PRINT TECHNOLOGY
  • Print Head: PrecisionCore TFP with VSDT and Auto Head Alignment
  • Print Modes: Uni & Bi-directional
  • Nozzle Configuration: 800 per colour
  • Maximum Resolution: 2400dpi x 1200dpi
  • Minimum Ink Droplet Size: 4.0pl
  • INK SYSTEM
  • Family: Epson Ultrachrome XD2
  • Type: All-Pigment Aqueous
  • Colours: C+M+Y+K
  • Cartridges: CMY 26/50ml, K 50/80ml
  • PERFORMANCE (per Sheet)
  • CAD A1: 34sec
  • MEDIA SUPPORT
  • Roll Format: Single roll top loaded spindle, 2 inch core, 0.05-0.21mm thick, 329-610mm wide, 110mm max diameter, 3Kg max weight
  • Sheet Format: Top loaded A4-A1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick
  • Auto Cutter: Inbuilt rotary type
  • Manual Double Sided Printing: Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability.
  • Output: Single sheet hold feature, Supplied with an A4/A3 output tray, Floor-standing model and optional Printer Stand incorporates a media basket
  • OPERATION
  • Control Panel: 4.3 inch Colour LCD touch screen
  • Control Code: ESC/P Raster, HP/GL/2 & HP RTL
  • Connectivity: USB 3.0 & Ethernet 10Base-T/100Base-TX/1000Base-T, WiFi, WiFi SPECIFICATIONS
  • Direct, Air Print
  • Compatibility: Windows 10/8.1/8/7/Vista/XP, Mac OSx10.6.8 or later
  • Memory: 1GB RAM
  • Scanner Support: USB interface with integrated control & auto enlargement, Supports: 5 x 7 inch, Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes, A2, US-C (17 x 22 inch), B2, US-D (22 x 34 inch), A1 & custom (89-610mm wide) output page sizes, Epson DS-530, DS-6500 & DS6000 scanner models
  • PHYSICAL DIMENSIONS
  • Desktop: 970(w) x 230(h) x 505(d)mm
  • Weight: 27kg (no consumables, media or options, no output tray, ASF closed
  • Floor Standing: 970(w) x 913(h) x 696(d)mm
  • Weight: 38kg (closed basket, no consumables, media or options, no output tray, ASF closed)
  • ENVIRONMENT
  • Operational Temp: 10 to 35C
  • Operational Humidity: 20 to 80% (no condensation)
  • Power Supply: 100 - 240 V AC, 50/60 Hz
  • Power Consumption: 28W Operating, 8W Standby, 1.6W Sleep
  • Operating Noise: 49dB
  • RECOMMENDED INSTALL SPACE
  • Desktop: 1020(w) x 380(h) x 915(d)mm
  • Floor-standing: 1020(w) x 1063(h) x 1270(d)mm
  • SHIPPING INFO
  • Packaging
  • Desktop: 1206(w) x 724(h) x 522(d)mm
  • Weight: 37Kg
  • Floor standing: 1206(w) x 724(h) x 587(d)mm
  • Weight: 49Kg
  • What's in the Box: Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD
  • REF: SC-T3160M
  • OEM: C11CJ36401
