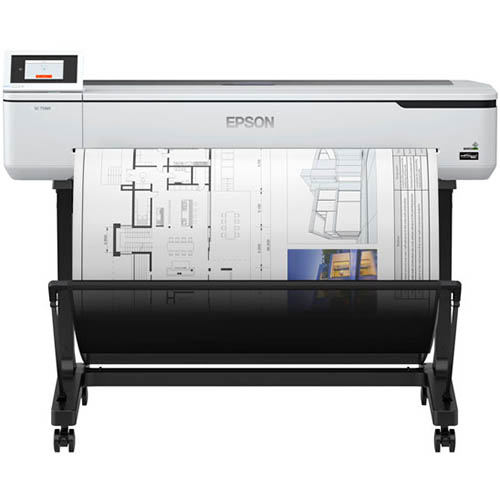

EPSON T5160 SURECOLOR LARGE FORMAT PRINTER 36 INCH

Code: 7090540   Brand: EPSON   Colour: GREY   Size: 36in

Please note: Prices are shown including GST (where applicable) and are in AUD$

The Epson SureColor Technical series is a versatile and compact range of printers. They are designed for users who need to produce large-format colour and black-and-white images, economically and at high speed. They are compatible with a wide range of media from basic bond paper, to photographic media. They support high resolution print with dense and consistent colour. They are ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters and displays
  • The SC-T5160 features Epson's latest Precision Core print head and aqueous UltraChrome XD2 pigment ink. It will print an A1 image in as little as 31s with output that dries almost instantly to be water and rub resistant. Ink ships in a range of cartridge sizes to suit different production and cost-per-print requirements. Designed for small and medium sized businesses that want to produce wide format prints, the printer can be purchased in either a desktop or floor-standing configuration, has a very small footprint, and can be installed against a wall or in a corner. It also ships with software that enables easy printing from office and CAD/GIS applications
  • High Productivity - prints an A1 image in as little as 31s and includes an integrated auto-cutter
  • High Precision - 2400x1200dpi resolution Epson Precision Core print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour
  • High Durability - all-pigment Epson UltraChrome XD2 ink dries almost instantly to be moisture and scratch resistant
  • High Reliability - solid construction backed with a comprehensive 'heads-n-all' warranty with service cover extendable up to 3 years
  • High Flexibility - supports roll paper up to 36in (914mm) wide, sheet paper up to A0/B1 and has integrated scanner support for optional MFP functionality
  • High Convenience - large 4.3in touchscreen panel with easy to use interface, top loaded ink and media, spindle roll loading, integrated Auto Sheet Feeder, auto sheet/roll switching, single page prints are held by the printer for easy removal while the floor standing model ships with a basket
  • Low Running Cost - ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 80ml
  • Easy Integration - compact design, high speed Gigabit Ethernet, convenient Wi-Fi/ Wi-Fi Direct and AirPrint support, HP-GL/2 and RTL emulation
Print Head: Precision Core TFP with VSDT and Auto Head Alignment
  • Print Modes: Uni & Bi-directional
  • Nozzle Configuration: 800 per colour
  • Maximum Resolution: 2400dpi x 1200dpi
  • Minimum Ink Droplet Size: 4.0pl
  • INK SYSTEM
  • Family: Epson Ultrachrome xD2
  • Type: All-Pigment Aqueous
  • Colours: C+M+Y+K
  • Cartridges: CMY 26/50ml, K 50/80ml
  • PERFORMANCE (per A1 Sheet)
  • CAD A1: 31sec
  • MEDIA SUPPORT
  • Roll Format: Single roll top loaded spindle, 2in core, 0.05-0.21mm thick, 329-910mm wide, 110mm max diameter
  • Sheet Format: Top loaded A4-A0/B1 single sheets, integrated A4/A3 Automatic Sheet Feeder (50 sheet max), 0.12-0.27mm thick
  • Auto Cutter: Inbuilt rotary type
  • Manual Double Sided Printing: Please refer to user guide, and contact Epson or your authorised dealer before selecting any media for this purpose in order to check suitability
  • Output: Single sheet hold feature, Supplied with an A4/A3 output tray, Floor-standing model and optional Printer Stand incorporates a media basket
  • OPERATION
  • Control Panel: 4.3in Colour LCD touch screen
  • Control Code: ESC/P Raster, HP/GL/2 & HP RTL
  • Connectivity: USB 3.0 & Ethernet 10Base-T/100Base-Tx/1000Base-T, Wi-Fi, Wi-Fi Direct, Air Print
  • Compatibility: Windows 10/8.1/8/7/Vista/xP, Mac OSx10.6.8 or later
  • Memory: 1GB RAM
  • Scanner Support: USB interface with integrated control & auto enlargement, Supports 5x7in, Letter, A5, B5, A4, B4, A3 & custom (89-297mm wide) input page sizes, Supports A2, US-C (17x22in), B2, US-D (22x34in), A1, B1, US-E (34x44in), A0 & custom (89-610mm wide) output page sizes, Supports Epson DS-530, DS-6500 & DS6000 scanner models
  • Physical (WxHxD): Desktop: 1268 x 230 x 505 mm, 33kg (no consumables, media or options, no output tray, ASF closed), Floor Standing: 1268 x 913 x 696 mm, 46kg (closed basket, no consumables, media or options, no output tray, ASF closed)
  • ENVIRONMENT
  • Operational Temp: 10 to 35 DegC
  • Operational Humidity: 20 to 80% (no condensation)
  • Power Supply: 100 - 240 V AC, 50/60 Hz
  • Power Consumption: 28W Operating, 8W Standby, 1.6W Sleep
  • Operating Noise: 49dB
  • Recommended Install Space (WxHxD): Desktop: 1318 x 380 x 915mm, Floor-standing: 1318 x 1063 x 1270mm
  • What's in the Box: Printer, Power Cord, 26ml CMY/50ml Black Ink set, 1 x Maintenance Tank, Setup Guide & Warranty Info. Mac/Windows Printer Driver, MS Office Plug-In, EpsonNet Config, EpsonNet Print (Win only), user & Network manuals on CD. An additional Stand is included with floor-standing configurations
  • OEM: C11CF12409
